ULXR-tyypin kovametalliterä 4-leikkuinen
4-leikkuinen G12-pinnoitettu terä 35° kulmalla.
Raekoko 0,4 ym.
Soveltuu teräksille kovuuteen 60 HRC asti.
Ole hyvä ja kirjaudu sisään ostaaksesi. Kirjaudu sisään
Kuvaus
|
1. ”Long shank with short flutes” design is suitable for surface, slot, side and 3D milling of steel material up to HRc52.
|
| Working Materials Hardness Level: Good at steels with hardness up to HRc32~52. E.g. P20, NAK80, SKD61(HRc52), S136(HRc52) etc. |
Applicable Milling Methods:  Finishing  Semi-finishing  Roughing |
| Applicable Coolant Ways: MQL (Mist) Machining Dry Machining ,Emulsion Machining ,Oil Machining |

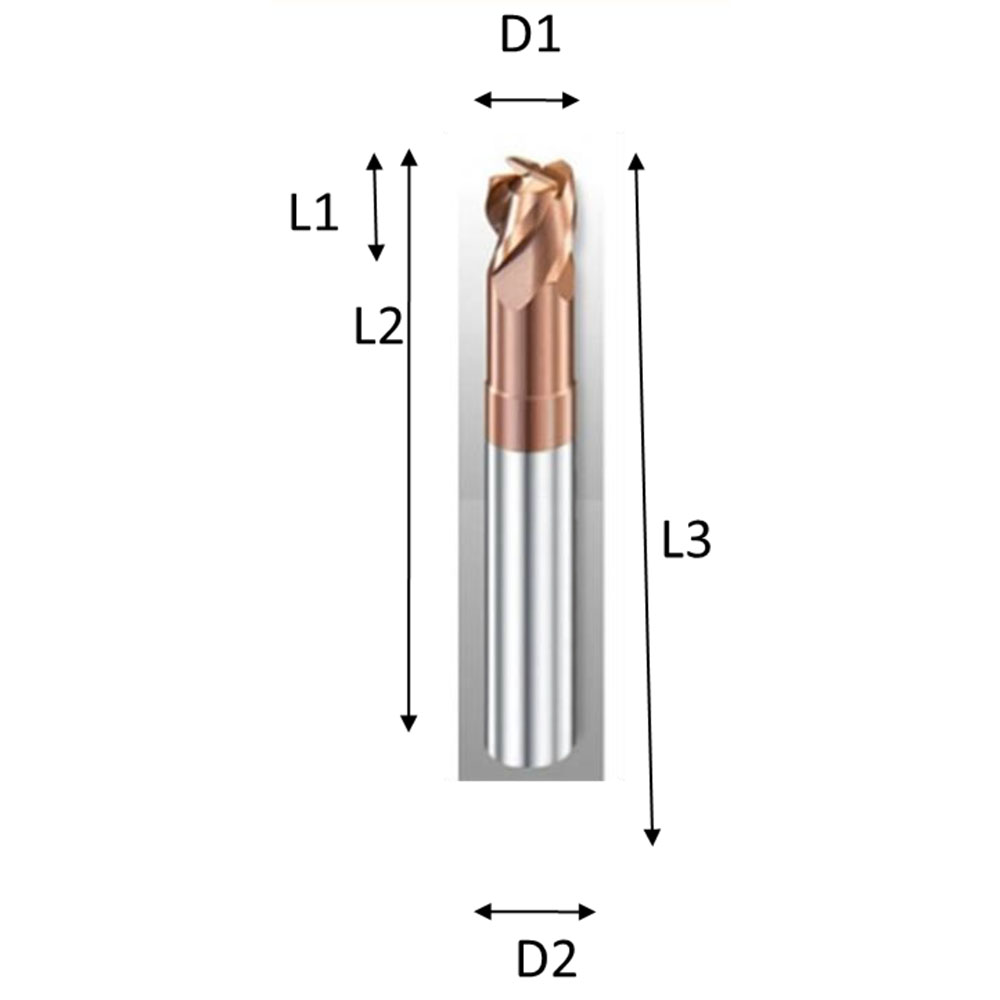

| Type No. | Diameter | Nick Dia. | Corner R | Flute Length | Effective Length | OAL | Shank Dia. |
|---|---|---|---|---|---|---|---|
| D1 | D3 | R | L1 | L2 | L3 | D2 | |
| ULXR0605 | 6.0 | 5.80 | 0.5 | 6 | 18 | 75 | 6 |
| ULXR0610 | 6.0 | 5.80 | 1.0 | 6 | 18 | 75 | 6 |
| ULXR0805 | 8.0 | 7.80 | 0.5 | 8 | 24 | 100 | 8 |
| ULXR0810 | 8.0 | 7.80 | 1.0 | 8 | 24 | 100 | 8 |
| ULXR1005 | 10.0 | 9.60 | 0.5 | 10 | 30 | 100 | 10 |
| ULXR1010 | 10.0 | 9.60 | 1.0 | 10 | 30 | 100 | 10 |
| ULXR1020 | 10.0 | 9.60 | 2.0 | 10 | 30 | 100 | 10 |
| ULXR1205 | 12.0 | 11.5 | 0.5 | 12 | 36 | 100 | 12 |
| ULXR1210 | 12.0 | 11.5 | 1.0 | 12 | 36 | 100 | 12 |
| ULXR1220 | 12.0 | 11.5 | 2.0 | 12 | 36 | 100 | 12 |
| ULXR1610 | 16.0 | 15.5 | 1.0 | 16 | 40 | 150 | 16 |
| ULXR1620 | 16.0 | 15.5 | 2.0 | 16 | 40 | 150 | 16 |
